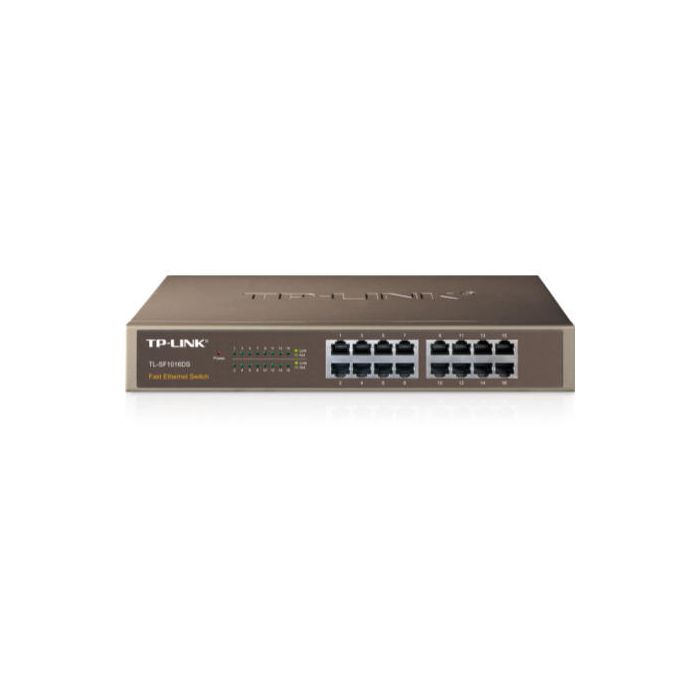

TP-Link TL-SF1016DS 16-Port Fast Ethernet Desktop/Rackmount Switch
SKU: TL-SF1016DS
Quickfind code : 561966
Product Description
TP-Link TL-SF1016DS 16-Port Fast Ethernet Desktop/Rackmount Switch
The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25% of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
Features
- Innovative energy-efficient technology saves power up to 25%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 3.2 Gbps Switching Capacity
- Store and forward Switching scheme
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware
- Plug and Play design simplifies installation
- Fan-less design to make sure it works quietly without disturbing your family
Specification
Management features
|
Switch type
|
16-Port Fast Ethernet Desktop Switch |
|---|---|
|
Switch layer
|
- |
Power
|
Power consumption (typical)
|
- W |
|---|
Ports & interfaces
|
Basic switching RJ-45 Ethernet ports quantity
|
16 |
|---|
Networking
|
Networking standards
|
IEEE 802.3i,IEEE 802.3U,IEEE 802.3x |
|---|---|
|
Auto MDI/MDI-X
|
Y |
|
10G support
|
- |
|
Full duplex
|
Y |
|
Flow control support
|
Y |
Protocols
|
Supported network protocols
|
TCP/IP |
|---|
Data transmission
|
Maximum data transfer rate
|
0.1 Gbit/s |
|---|---|
|
MAC address table
|
8000 entries |
|
Supported data transfer rates
|
10/100 Mbps |
|
Store-and-forward
|
Y |
|
Switching capacity
|
3.2 Gbit/s |
Design
|
LED indicators
|
Link,Power |
|---|---|
|
Certification
|
FCC, RoHS |
|
Rack mounting
|
Y |
Security
|
MAC address filtering
|
Y |
|---|
Power Over Ethernet (PoE)
|
Power over Ethernet (PoE) Support
|
- |
|---|
Other features
|
Dimensions (WxDxH)
|
294 x 180 x 44 |
|---|---|
|
Connectivity Technology
|
Wired |
|
Wi-Fi
|
N |
|
Power requirements
|
100 - 240VAC, 50/60Hz |
Operational conditions
|
Operating temperature (T-T)
|
0 - 40 |
|---|---|
|
Storage relative humidity (H-H)
|
5 - 90 |
|
Operating relative humidity (H-H)
|
10 - 90 |
|
Storage temperature (T-T)
|
-40 - 70 |
