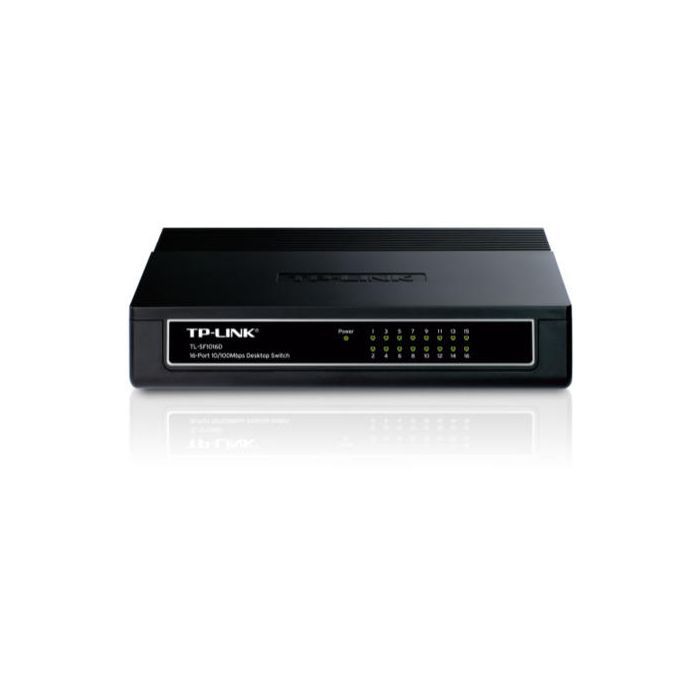

TP-Link TL-SF1016D 16-Port Unmanaged 10/100M Desktop Switch
SKU: TL-SF1016D
Quickfind code : 556596
Product Description
TP-Link TL-SF1016D 16-Port 10/100M Desktop Switch
The TL-SF1016D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or work group users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016D can save up to 70% of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
Features
- Innovative energy-efficient technology saves power up to 70%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 3.2Gbps Switching Capacity
- 9K Jumbo frame improves performance of large data transfers
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
- Fan-less design ensures quiet operation
- Desktop or wall-mounting design
- Plug and Play design simplifies installation
Specification
Data transmission
|
Store-and-forward
|
Y |
|---|---|
|
Supported data transfer rates
|
10/100 Mbps |
|
Switching capacity
|
3.2 Gbit/s |
|
Maximum data transfer rate
|
0.1 Gbit/s |
|
MAC address table
|
8000 entries |
Networking
|
Full duplex
|
Y |
|---|---|
|
Flow control support
|
Y |
|
Networking standards
|
IEEE 802.3i,IEEE 802.3U,IEEE 802.3x |
Design
|
Certification
|
FCC, CE, RoHS |
|---|---|
|
Colour of product
|
White |
Power Over Ethernet (PoE)
|
Power over Ethernet (PoE) Support
|
N |
|---|
Management features
|
Switch type
|
Unmanaged |
|---|
Ports & interfaces
|
DC-in jack
|
Y |
|---|---|
|
Copper ethernet cabling technology
|
100BASE-TX,10BASE-T |
|
Basic switching RJ-45 Ethernet ports quantity
|
16 |
Protocols
|
Supported network protocols
|
CSMA/CD, TCP/IP |
|---|
Other features
|
Connectivity Technology
|
Wired |
|---|---|
|
Dimensions (WxDxH)
|
200 x 142 x 40 mm |
|
Connectivity LEDs
|
Y |
Operational conditions
|
Operating temperature (T-T)
|
0 - 40 ?C |
|---|---|
|
Operating relative humidity (H-H)
|
10 - 90 % |
|
Storage temperature (T-T)
|
-40 - 70 ?C |
|
Storage relative humidity (H-H)
|
5 - 90 % |
