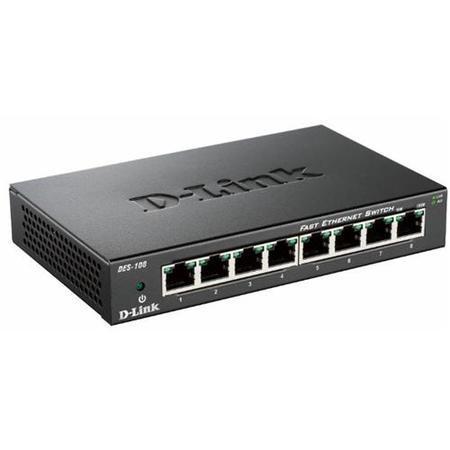

8-port 10/100 Metal Housing Desktop Switch

8-port 10/100 Metal Housing Desktop Switch

SKU: DES-108/B
See full description >
Product Description

D-Link 8-port 10/100 Metal Housing Unmanaged Desktop Switch

Featuring easy access auto sensing 10/100 front ethernet ports with two color led indicators per port to quickly distinguish link; speed; and half/full duplex transmission status. the des-108 switch also supports auto mdi/mdix crossover allowing each port can be plugged directly to a server; hub; router; or switch using regular straight-through twisted-pair ethernet cables. support for ieee 802.1p qos is included; which organizes and prioritizes time-sensitive and important data for efficient delivery. DES-108/B

Specification

Management features

Switch layer
-
Switch type
-
Quality of Service (QoS) support
Y

Security

MAC address filtering
Y

Power Over Ethernet (PoE)

Power over Ethernet (PoE) Support
-

Data transmission

Store-and-forward
Y
Supported data transfer rates
10/100 Mbps
Jumbo Frames support
Y
MAC address table
1000 entries
Maximum data transfer rate
0.1 Gbit/s
Switching capacity
1.6 Gbit/s

Networking

Full duplex
Y
Flow control support
Y
10G support
N
Auto MDI/MDI-X
Y
Networking standards
IEEE 802.1p,IEEE 802.3,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x

Design

Housing material
Metal
Rack mounting
N
LED indicators
Link,Power
Colour of product
Black
Certification
RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB

Performance

Stackable
-
Packet buffer memory
0.768 MB
Mean time between failures (MTBF)
511.323 H

Ports & interfaces

DC-in jack
Y
Copper ethernet cabling technology
100BASE-TX,10BASE-T
Basic switching RJ-45 Ethernet ports quantity
8

Power

Input current
1 A
Input voltage
5 V
Power consumption (typical)
2.1 W

Operational conditions

Operating temperature (T-T)
0 - 50 ?C
Storage temperature (T-T)
-10 - 70 ?C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
5 - 90 %

Other features

Dimensions (WxDxH)
162 x 102 x 28 mm
Data transfer rate
200 Mbit/s
