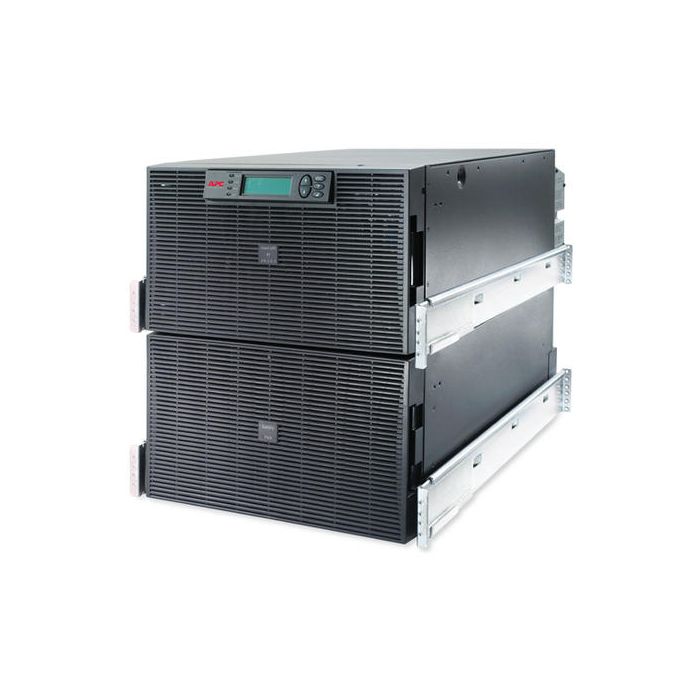

APC Smart-UPS RT UPS - 16 kW - 20000 VA
SKU: SURT20KRMXLI
Quickfind code : 435266
Product highlights
- Battery: 5year(s)
- Product line: APC Smart-UPS RT
- AC 220/230/240V
- Power Capacity 20000VA
Product Description
PRODUCT FEATURES: Built-in static bypass, Internal bypass Less than 5% for full load Maintenance-free sealed lead-acid battery with suspended electrolyte Multi-function LCD status and control console Audible and visible alarms Full time multi-pole noise filtering 0.3% IEEE surge let-through Zero clamping response time
Specification
Power
|
Emergency Power Off (EPO)
|
Y |
|---|---|
|
Power supply input frequency
|
40/70 Hz |
|
Output power
|
16000 W |
|
Maximum current
|
105 A |
|
Output power capacity
|
20000 VA |
Ports & interfaces
|
Serial ports quantity
|
1 |
|---|---|
|
Number of output IEC jumpers
|
2 |
|
Ethernet LAN (RJ-45) ports
|
1 |
Battery
|
Battery recharge time
|
2.5 h |
|---|---|
|
Typical backup time at half load
|
15.3 min |
|
Replacement battery cartridge
|
RBC44 |
|
Battery Technology
|
Sealed Lead Acid (VRLA) |
|
Typical backup time at full load
|
4.9 min |
Performance
|
Noise level
|
59 dB |
|---|---|
|
Audible alarm(s)
|
Y |
Design
|
Colour of product
|
Black |
|---|
Other features
|
Nominal input voltage
|
230 V |
|---|---|
|
Quantity per pallet
|
1 pc(s) |
|
Dimensions (WxDxH)
|
432 x 773 x 533 mm |
|
Package dimensions (WxDxH)
|
610 x 1003 x 990 mm |
|
Input connection type
|
(1PH+N+G), (3PH + N + G) |
|
Networking features
|
10/100 BASE-T |
|
Interface
|
DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot |
|
Output voltage note
|
230/240 |
|
Output connections
|
(1) Hard Wire 3-wire (H N + G), <BR>(1) Hard Wire 5-wire (3PH + N + G), <BR>(8) IEC 320 C19 <BR> |
|
Nominal output voltage
|
230 V |
Operational conditions
|
Operating temperature (T-T)
|
0 - 40 °C |
|---|---|
|
Storage relative humidity (H-H)
|
0 - 95 % |
|
Operating relative humidity (H-H)
|
0 - 95 % |
|
Storage temperature (T-T)
|
-15 - 45 °C |
|
Non-operating altitude
|
0 - 15000 m |
|
Operating altitude
|
0 - 3000 m |
Certificates
|
Certification
|
EN/IEC 62040-2,EN/IEC 62040-1-1,VDE |
|---|
Weight & dimensions
|
Package weight
|
314270 g |
|---|---|
|
Weight
|
247730 g |
