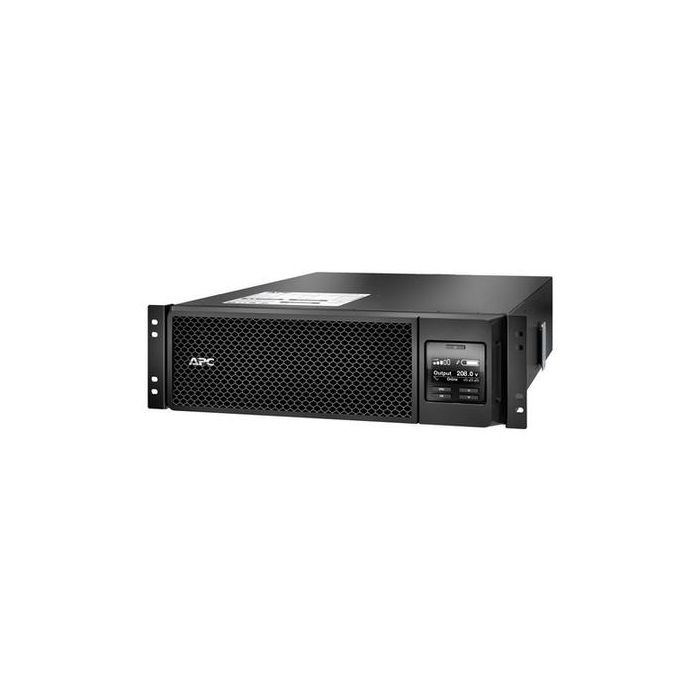

APC Smart-UPS 5000VA Rack
SKU: SRT5KRMXLI-6W
Quickfind code : 1063077
Product highlights
- Battery: 5year(s)
- Product line: APC Smart-UPS SRT
- AC 230V
- Power Capacity 5000VA
Product Description
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks.
Specification
Power
|
Output operation voltage (min)
|
220 V |
|---|---|
|
Power supply input frequency
|
40 - 70 Hz |
|
Input operation voltage (min)
|
160 V |
|
Output power
|
4500 W |
|
Surge energy rating
|
480 J |
|
Output operation voltage (max)
|
240 V |
|
Crest factor
|
3:1 |
|
Emergency Power Off (EPO)
|
Y |
|
Output voltage THD
|
3 % |
|
Output frequency regulation
|
50/60 Hz |
|
Input operation voltage (max)
|
275 V |
|
Output power capacity
|
5000 VA |
Performance
|
Noise level
|
55 dB |
|---|---|
|
Waveform
|
Sine |
|
UPS topology
|
Double-conversion (Online) |
|
Audible alarm(s)
|
Y |
Battery
|
Battery recharge time
|
1.5 h |
|---|---|
|
Typical backup time at full load
|
4 min |
|
Battery Technology
|
Sealed Lead Acid (VRLA) |
|
Typical backup time at half load
|
11.8 min |
Design
|
Rack mounting
|
3U |
|---|---|
|
Form Factor
|
Rackmount |
|
Colour of product
|
Black |
|
International Protection (IP) code
|
IP20 |
Ports & interfaces
|
AC outlet types
|
C13 coupler,C19 coupler |
|---|---|
|
Serial ports quantity
|
1 |
|
USB 2.0 ports quantity
|
1 |
|
AC outlets quantity
|
10 AC outlet(s) |
Certificates
|
Certification
|
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, NOM, VDE |
|---|---|
|
RoHS compliance
|
Y |
Weight & dimensions
|
Package weight
|
66860 g |
|---|---|
|
Weight
|
54430 g |
|
Package height
|
330 mm |
|
Package depth
|
960 mm |
|
Package width
|
610 mm |
|
Depth
|
719 mm |
|
Width
|
432 mm |
|
Height
|
130 mm |
Operational conditions
|
Operating temperature (T-T)
|
0 - 40 °C |
|---|---|
|
Storage relative humidity (H-H)
|
0 - 95 % |
|
Operating relative humidity (H-H)
|
0 - 95 % |
|
Storage temperature (T-T)
|
-15 - 45 °C |
|
Operating altitude
|
0 - 3000 m |
|
Non-operating altitude
|
0 - 15000 m |
