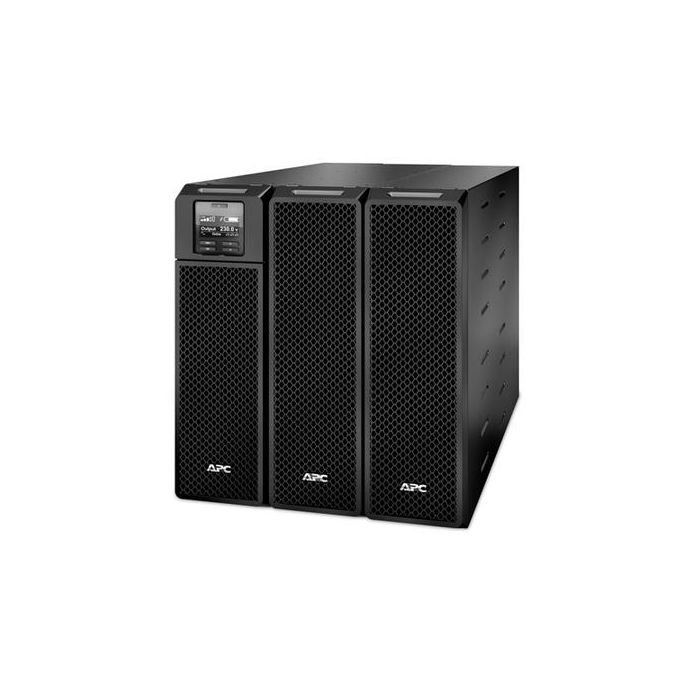

APC SMART-UPS SRT 10000VA 230V
SKU: SRT10KXLI
Quickfind code : 900024
Product highlights
- LCD graphics display
- 10/100Base-T connection
- Green mode
- Battery failure notification
- LCD graphics displayText and mimic diagrams that display modes of operation, system parameters and alarms.
Product Description
Text and mimic diagrams display modes of operation, system parameters and alarms. Operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Key Product Info
- LCD graphics display
- 10/100Base-T connection
- Green mode
- Battery failure notification
Product Features
- LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms. - 10/100Base-T connection
Connect the device to a network using a 10 or 100Base-T connection. - Green mode
Operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. - Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
What's in the box?
- CD with software
- Documentation CD
- Installation guide
- Temperature probe
- USB cable
- Warranty card
- Web/SNMP management card
Specification
Design
|
Form Factor
|
Tower |
|---|---|
|
Colour of product
|
Black |
Ports & interfaces
|
AC outlet types
|
C13 coupler,C19 coupler |
|---|---|
|
Serial ports quantity
|
1 |
|
USB 2.0 ports quantity
|
1 |
|
Ethernet LAN (RJ-45) ports
|
1 |
|
AC outlets quantity
|
10 AC outlet(s) |
Power
|
Emergency Power Off (EPO)
|
Y |
|---|---|
|
Power supply input frequency
|
45/65 Hz |
|
Crest factor
|
3:1 |
|
Surge energy rating
|
480 J |
|
Output operation voltage (max)
|
240 V |
|
Output operation voltage (min)
|
220 V |
|
Output power
|
10000 W |
|
Output voltage THD
|
3 % |
|
Output frequency regulation
|
50/60 Hz |
|
Input operation voltage (min)
|
100 V |
|
Output power capacity
|
10000 VA |
|
Input operation voltage (max)
|
476 V |
Battery
|
Battery Technology
|
Sealed Lead Acid (VRLA) |
|---|---|
|
Battery recharge time
|
1.5 h |
|
Typical backup time at half load
|
11.5 min |
|
Typical backup time at full load
|
3.8 min |
Warranty
|
Warranty
|
3 years warranty |
|---|
Weight & dimensions
|
Weight
|
111820 g |
|---|---|
|
Depth
|
715 mm |
|
Package width
|
600 mm |
|
Package depth
|
1000 mm |
|
Package height
|
461 mm |
|
Package weight
|
126820 g |
|
Width
|
263 mm |
|
Height
|
432 mm |
Certificates
|
Certification
|
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH |
|---|---|
|
RoHS compliance
|
Y |
Operational conditions
|
Operating temperature (T-T)
|
0 - 40 ?C |
|---|---|
|
Storage relative humidity (H-H)
|
0 - 95 % |
|
Operating relative humidity (H-H)
|
0 - 95 % |
|
Storage temperature (T-T)
|
-15 - 45 ?C |
|
Non-operating altitude
|
0 - 15000 m |
|
Operating altitude
|
0 - 3000 m |
