APC

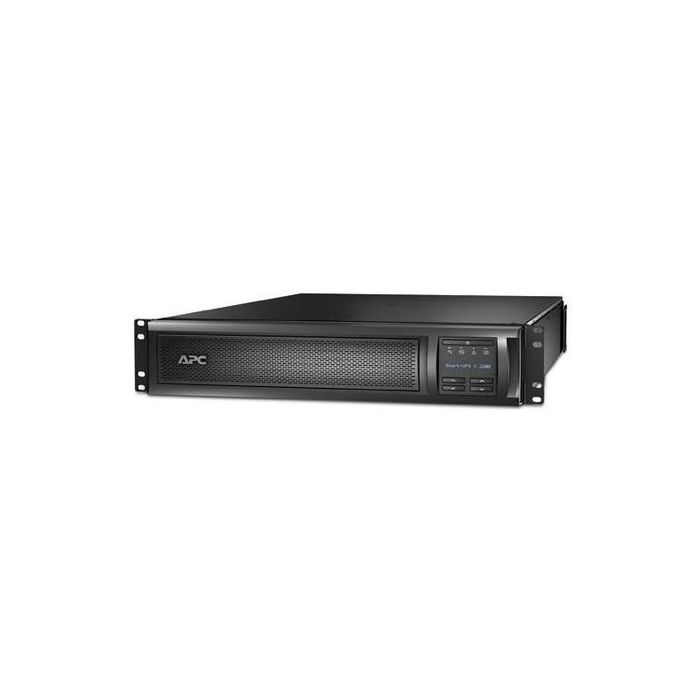

APC Smart-UPS X 2200VA Rack/To

SKU: SMX2200RMHV2U

Product highlights

  • Intelligent battery management
  • Power conditioning
  • Temperature-compensated battery charging
  • Automatic restart of loads after UPS shutdown
  • Automatic self-test
Product Description

APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.

Key Product Info

  • Intelligent battery management
  • Power conditioning
  • Temperature-compensated battery charging
  • Automatic restart of loads after UPS shutdown
  • Automatic self-test
  • Network manageable
  • Audible alarms
  • LED status indicators
  • Disconnected battery notification
  • User-replaceable batteries
  • Hot-swappable batteries
  • Adjustable voltage-transfer points
  • Adjustable voltage sensitivity
  • Safety-agency approved

Product Features

  • Intelligent battery management
    It maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Power conditioning
    Protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.
  • Automatic restart of loads after UPS shutdown
    Automatically starts up the connected equipment upon the return of utility power.
  • Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Network manageable
    It provides remote power management of the UPS over the network.
  • Audible alarms
    Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
  • LED status indicators
    Quickly understand unit and power status with visual indicators.
  • Disconnected battery notification
    Warns when a battery is not available to provide backup power.
  • User-replaceable batteries
    Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
  • Hot-swappable batteries
    It ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
  • Adjustable voltage-transfer points
    It maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • Adjustable voltage sensitivity
    It provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Safety-agency approved
    It ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

What's in the box?

  • CD with software, Rack Mounting Brackets, Smart UPS signalling RS-232 cable, USB cable, User Manual

Specification

Power

Emergency Power Off (EPO)
Y
Power supply input frequency
50/60
Output voltage THD
5 %
Surge energy rating
645 J
Output power
1980 W
Output power capacity
2200 VA
Efficiency
98.1 %

Design

Rack mounting
2U
Form Factor
Rack
Colour of product
Black

Ports & interfaces

AC outlet types
C13 coupler,C19 coupler
Cable length
1.83 m
Power plug
C20 coupler
AC outlets quantity
9 AC outlet(s)

Battery

Battery type
APCRBC117
Battery recharge time
3 hour(s)
Battery Technology
Sealed Lead Acid (VRLA)

Warranty

Warranty
3 years warranty

Certificates

Certification
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IEC 60950, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI
RoHS compliance
Y

Weight & dimensions

Width
432 mm
Height
85 mm
Weight
37320 g
Package weight
45360 g
Depth
667 mm

Other features

Nominal input voltage
230 V
Package dimensions (WxDxH)
596 x 869 x 243
Interface
SmartSlot, USB
Nominal output voltage
230 V

Operational conditions

Operating relative humidity (H-H)
0 - 95
Operating temperature (T-T)
0 - 40
Storage temperature (T-T)
-15 - 45
Storage relative humidity (H-H)
0 - 95 %
Non-operating altitude
0 - 15000
Operating altitude
0 - 3000
