TP-Link Omada AX3000 Gigabit VPN Router

SKU: ER706W
Product Description
<b>Flexible Wi-Fi Coverage through Business Wired Connectivity</b><br>Omada AX3000 Gigabit VPN Router<br><br><b>Ubiquitous Connectivity Starts with WiFi 6</b><br>ER706W is an enterprise-grade dual-band wireless router. It’s ideal for remote administration that requires high performance due to the revolutionary combination of the latest WiFi 6 technologies, including HE160, OFDMA, 1024 QAM, and more.‡ Simultaneously supporting 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, ER706W’s concurrent transmission rate reaches up to 3 Gbps. Bufferless network experience is at your fingertips.<br><br><b>Up to Five WAN Ports & One USB 3.0 Port for Mobile Broadband</b><br>Up to 5× WAN SFP and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. The USB 3.0 port delivers a higher transmission rate for mobile connectivity. Mobile broadband via a 4G/3G modem is also supported for WAN backup by connecting to the USB port.<br><br><b>Professional Hardware Empowers the Wireless Future</b><br>The triple external detachable antenna design grants ER706W excellent wireless coverage, reliable signal strength, and higher receiving sensitivity. It’s easier for users to adjust the quantity and angle of antennas to fit various network environments.<br><br>ER706W adopts steel material for higher thermal conductivity and heat dissipation, ensuring operation reliability.<br><br><b>Self-Organizing Network with Omada Access Points</b><br>ER706W is able to seamlessly connect to Omada access points that support mesh technology, ideal for large-scale environments. Intelligent self-organization optimizes the best path between ER706W and Omada Access Points while self-healing ensures you stay online even when one AP is disrupted.<br><br><b>High-Security VPN</b><br>Pass-through traffic and a variety of VPN protocols, such as IPSec/SSL/Wireguard/PPTP/L2TP VPN, are available on ER706W, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features a built-in hardware engine to boost VPN performance.<br><br><b>Abundant Security Features</b><br><br>Powerful Firewall<br>Advanced firewall policies protect your network and data.<br><br>Convenient VLAN Support<br>Create virtual network segments for enhanced security and simplified network management.<br><br>DoS Defense<br>Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.<br><br>IP/MAC/URL Filtering<br>Forcefully prevent viruses and attacks from intruders.<br><br>IP-MAC Binding<br>Reserves static IP assignment for clients to defend against ARP attacks and spoofing.<br><br>One-Click ALG Activation<br>One-Click ALG Activation for applications such as FTP, H323, SIP, IPsec, and PPTP.<br><br><b>Omada SDN—The Smarter Cloud Solution for Business Networking</b><br>The path to the future of wireless begins with the Omada Software Defined Networking (SDN) solution. As the gateway that seamlessly integrates into the Omada SDN platform, ER706W allows for remote and centralized management, anywhere, anytime.<br><br><b>Easy Management with the Omada App</b><br>Users can configure ER706W in both the standalone and controller modes via the Omada app. Standalone management ensures max convenience. No need to set up additional controllers.<br><br>Follow the configuration instructions on the app to get set up in minutes. Multi-function configuration is ready to go, including network status monitoring and client management, all from the comfort of a smartphone or tablet.
Specification

WAN connection

Ethernet WAN
Y
3G/4G USB modem compatibility
Y
WAN connection type
SFP

Security

Access Control List (ACL)
Y
DMZ support
Y
Filtering
Y
Guest access
Y
Network address translation (NAT)
Y
Schedule access
Y
Security algorithms
WPA,WPA2,WPA3-Enterprise
System event log
Y
URL filtering
Y

Antenna

Antenna design
External
Antenna gain level (max)
4.5dBi
Antennas quantity
3

Network

Cabling technology
10/100/1000Base-T(X)
Dynamic DNS (DDNS)
Y
Ethernet LAN
Y
Ethernet LAN data rates
10,100,1000Mbit/s
Ethernet LAN interface type
Gigabit Ethernet
Port forwarding
Y
Port triggering
Y
VPN tunnels quantity
50

Management features

MIMO
Y
MU-MIMO technology
Y
Reset button
Y
Web-based management
Y

Ports & interfaces

DC-in jack
Y
Ethernet LAN (RJ-45) ports
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB Port
Y

Protocols

DHCP server
Y
Routing protocols
OSPF,RIP
Universal Plug and Play (UPnP)
Y

Weight & dimensions

Depth
131mm
Height
35mm
Width
226mm

Design

LED indicators
System,USB,WAN,WLAN
Product Colour
Black
Product Type
Desktop/pole router
Wall mountable
Y

Operational conditions

Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40C

Wireless LAN features

WLAN data transfer rate (first band)
574Mbit/s
WLAN data transfer rate (second band)
2402Mbit/s
WLAN data transfer rate (max)
3000Mbit/s
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Product Questions (0)
Product Questions and Answers
No questions to show

Sign in or Create an account to ask a question

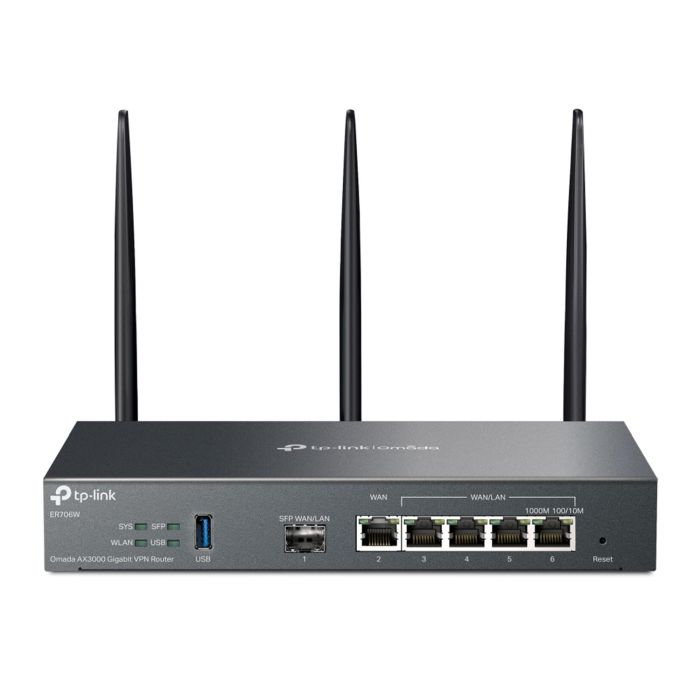

Product Image
