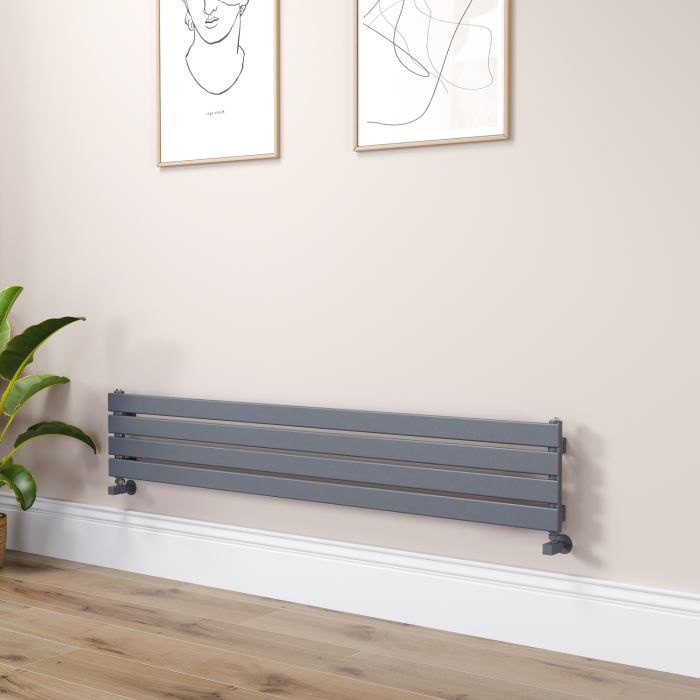

Riace Linea Dark Grey Anthracite Flat Designer Radiator 280x1600mm Single Panel 1686 BTU - Horizontal Bars
SKU: RHS4-1600-DGCF
Quickfind code : 2062287
Product Description
The details
Elevate the look and comfort of your home with our Riace range of stylish reversed horizontal designer radiators. Perfectly suited for traditional and modern interiors, these radiators combine sleek design with high-performance heating. The slim, horizontal form fits seamlessly into any room, from living areas to bedrooms, while offering powerful and efficient heating.
Riace horizontal designer reversed radiators are engineered to provide exceptional heating output, ensuring your space is always warm and inviting, even in the coldest months. Available in single and double-panel options, they are designed to meet various heating needs. Whether you're looking for a space-saving radiator for a compact room or a more powerful unit for a larger space, you’ll find the perfect match with Riace’s diverse range of space-saving sizes and styles.
Constructed from premium steel, these radiators are built for durability and long-lasting performance. Each radiator is finished with a resilient coating that guards against wear and tear, ensuring easy maintenance while adding a contemporary touch to your decor. Designed for central heating systems, Riace reversed radiators ensure consistent and reliable warmth throughout your home.
Key features
- Sleek horizontal single-panel radiator with 4 flat bars, perfect for both modern and classic interiors.
- Slim and space-saving with a high thermal efficiency.
- 2140 BTU / 1686 BTU (Delta T60 / T50) heat output.
- Full range available in single and double-panel options for versatile heating needs.
- Durable construction with a high-quality finish for long-lasting use.
- Easy to maintain - can be cleaned repeatedly without affecting quality or finish.
- Powder-coated steel - resistant to scratches, stains, impacts, chemicals, acids, and UV-resistant.
- A variety of sizes and colours to fit different designs and layouts.
- Compatible with all central heating systems.
- Approx. Wall to Radiator Face (mm): 75 mm.
- Approx. Wall to Pipe Centre: 46 mm.
- Approx. Pipe Centre to Pipe Centre: 1554 mm.
- Built to Last: 1.5mm thick steel for guaranteed durability.
- Tested and certified by a notified body to CE/ BS EN 442 Standards.
- CE Marked and Declaration of Performance provided (DOP).
- ISO 9001:2015 / GB/T19001-2016 Registered Manufacturer.
- Includes User Manual, Wall fixings, Wall plugs, Blanking and Bleed plug.
Specifications
- Wall Mounted: Yes
- Colour: Dark Grey Anthracite
- Net Size (HxWxD): 28x160x4.6 cm
- Gross Size (HxWxD): 37.5x170.5x7.5 cm
- Net Weight: 11.21 kg
- Gross Weight: 13.31 kg
- Panel Type: Single
- Columns per panel: 4
- Shape: Flat
- Direction: Horizontal
- Max Operation Pressure: 5 bars
- Max Operation Temperature: <95°C
- Connection Size: ½ inch BSP
- Water Content: 8.4 litres
Please note: Valves are not included but can be added to your order separately. Please note that all measurements are approximate. We recommend purchasing radiators and valves before fitting the pipework.
Downloads
User manualSpecification
Key Information
|
Fuel type
Choose from electric heaters, central heating or duel fuel for flexible and efficient heating
|
Central Heating |
|---|---|
|
Central Heating
|
Yes |
|
Alignment
|
Horizontal |
|
Number of Panels
Single panel radiators are better for small spacers and are slimmer. Double panel radiators are better for larger spaces. The more panels, the more surface area, and the more heat emitted.
|
Single |
|
Panel Shape
|
Flat |
|
Heat Output (BTU - T50)
How much energy the heater puts into heating your home. Based on a water temperature of 75°C, T50 boilers represent the UK standard for domestic gas boilers. The UK adopted this standard in 2013. The most common central heating system in use.
|
1686 |
|
BTU (T30)
Based on a water temperature of 55°C, T30 central heating systems are found in well-insulated modern properties with eco-friendly heating
|
863 |
|
BTU (T60)
T60 represents an old standard of central heating (Pre-2013) - Based on a water temperature of 95°C
|
2140 |
|
Bathroom Safe
|
Yes |
Dimensions & Weight
|
Height
|
28cm |
|---|---|
|
Depth
|
5cm |
|
Width
|
160cm |
|
Weight (Kg)
|
11.21kg |
|
Distance from Wall (mm)
|
75mm |
|
Wall to Pipe Centre (mm)
|
46mm |
|
Pipe Centres
The approximate distance between the centres of the two pipe inlets on a radiator. This distance may vary slightly depending on the valves used.
|
1554mm |
Features
|
Frost protection
Produces a low level of heat output to protect against frost
|
Yes |
|---|
Other Information
|
Brand
|
Riace |
|---|---|
|
Colour
|
Dark Grey Anthracite |
|
Finish
|
Matt |
|
Style
|
Modern |
|
Material
Steel radiators are typically more affordable and come in diverse designs, while aluminum radiators excel in heat conductivity, offering faster heating and lighter weight.
|
Steel |
|
Warranty
|
10 Year Warranty |
|
Condition
|
New |
