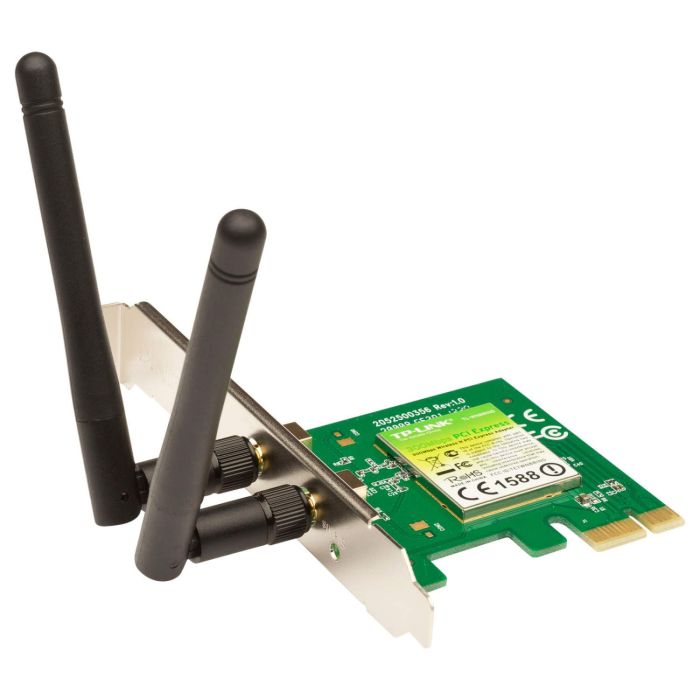

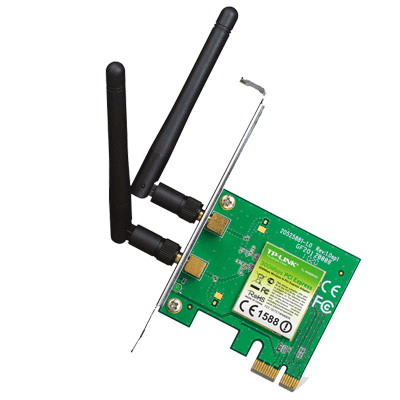

TP-Link TL-WN881ND 300Mbps Wireless N PCI Express

• 300Mbps Wireless N PCI Express Adapter TL-WN881ND
• Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming and Internet calls
• MIMO technology with stronger signal penetration strength, wider wireless coverage, providing better performance and stability
• Easily setup a highly secured wireless link with WPS™ (Wi-Fi Protected Setup)

TL-WN881ND

Wireless N PCI Express 2.0(x1) Adapter TL-WN881ND allows you to connect a desktop computer to a wireless network and access high-speed Internet connection. Comply with IEEE 802.11n, they provide wireless speed up to 300Mbps, which is beneficial for the online gaming or even HD video streaming.

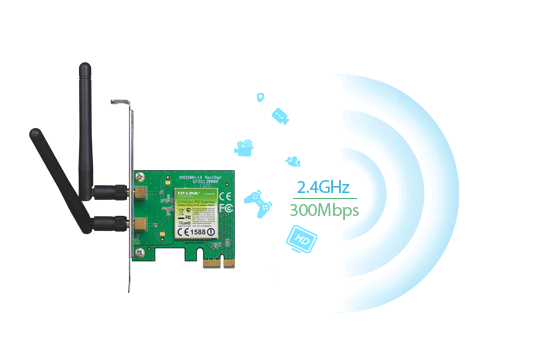

Wireless N - Speed & Range

MIMO (multiple input, multiple output antennas) technology, it shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!



CCA Technology - Stable Wireless Signals

Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhanced the wireless performance.



HARDWARE FEATURES:

• Interface: PCI Express (x1)
• Dimensions: 4.8 x 3.1 x 0.8 in. (120.8 x 78.5 x 21.5mm)
• Antenna Type: Detachable Omni Directional (RP-SMA)
• Antenna Gain: 2dBi

WIRELESS FEATURES:

• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 2.400-2.4835GHz
• Signal Rate:
  11n: Up to 300Mbps(dynamic)
  11g: Up to 54Mbps(dynamic)
  11b: Up to 11Mbps(dynamic)
• EIRP: <20dBm(EIRP)
• Reception Sensitivity:
  270M: -68dBm@10% PER
  130M: -68dBm@10% PER
  108M: -73dBm@10% PER
  54M: -73dBm@10% PER
  11M: -89dBm@8% PER
  6M: -87dBm@10% PER
  1M: -90dBm@8% PER
• Wireless Modes: Ad-Hoc / Infrastructure mode
• Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK
• Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

OTHER SPECIFICATIONS:

• Certification: CE, FCC, RoHS
• Package Contents:
  Wireless Adapter
  x2 Detachable Omni directional antenna
  Resource CD
  Quick Installation Guide
• System Requirements: Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits)
• Environment:
  Operating Temperature: 0ºC~40ºC (32ºF~104ºF)
  Storage Temperature: -40ºC~70ºC (-40ºF~158ºF)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
