Black 2 Outlet Ceiling Mounted Thermostatic Mixer Shower Set with Hand Shower - Zana
SKU: BUN/BeBa_27181/78073
Quickfind code : 1542546
Product highlights
- Thermostatic mixer shower set with a modern square styling and matt black finish.
- Includes a concealed valve, shower ceiling arm, 250mm shower head and adjustable slide rail kit with hand shower.
- One handle controls the temperature, while the other controls the water flow.
- High-quality brass construction ensures durability and long-term beauty.
- Swivel ball joint connector ensures easy adjustment of the shower head for the perfect angle.
Product Description
Features we love
- Dual outlet concealed shower set with thermostatic temperature control
- Made from brass finished in matt black for a modern bathroom look
- Pressure requirements min 0.5 bar, max 3.0 bar
- Quick and simple installation
- Shower set includes: a square rainfall shower head, concealed valve, square Hand Shower, square wall outlet elbow, and ceiling arm
All about me
This Zana Matt Black Dual Control Shower Valve adds a sleek minimalistic touch to any shower. With a modern matt black finish, this valve will suit most of our shower sets to help you build your ideal suite. It has an automatic shut-off in the event of either hot or cold water supply failure. The pre-set temperature is 38 degrees, with a push-button override to 48 degrees. This valve is also suitable for combination boilers, pressurized systems, pumped systems, and gravity-fed systems (which may require a pump. The dual controls allow for an adjustable Hand Shower for easy cleaning and a luxury spa feel with a rainfall shower head.
The electroplated finish strengthens the shower's resistance to rust and corrosion, boosting longevity and endurance.
Need to know - valve
- Dimensions: H160.5 x W130 x D134.5 mm
- Number Of Outlets: 2
- Style: Modern
- Valve Accessibility: Easily accessible check valve
- Temperature: Pre-set 38°C, with push button override to 48°C
- Function: Automatic shut-off in the event of hot or cold water supply failure
- Material: Brass, zinc, stainless steel
- Weight: 2.369kg
- Valve Type: Concealed
- Outlet Size: G 3/4"
- Inlet Size: G 3/4"
- Colour: Black
- Finish: Matt
- Finish process: Electroplating
- Features: Thermostatic Cartridge
- Recommended minimum pressure: 0.5 bar (flow rate of 9.9 litres per minute)
- Recommended maximum pressure:3.0 bar (flow rate of 24.6 litres per minute)
- Warranty: 3 years

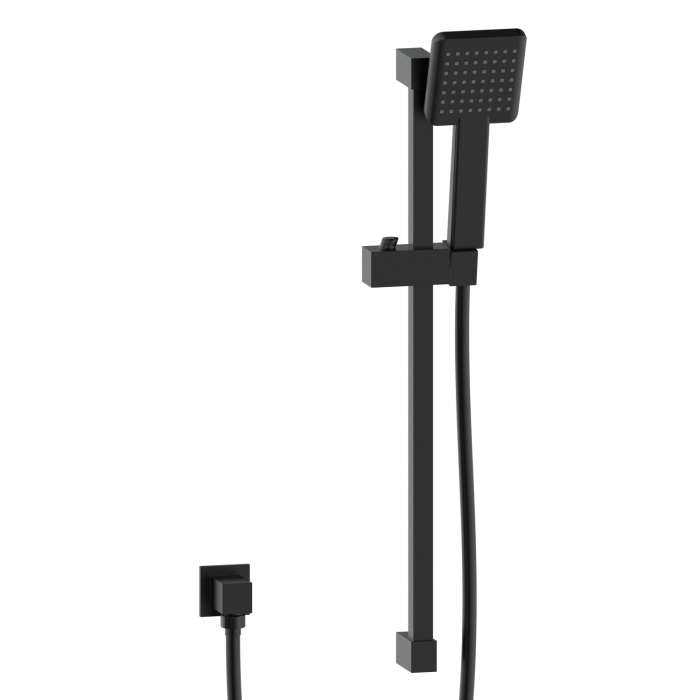

Need to know - slide rail kit
- Length of riser rail kit: 610mm
- Depth of riser rail kit: 57.5mm
- Shower head dimensions: H100 x W95mm
- Length of shower hose: 1500mm, pvc smooth hose
- Elbow size: H30 x W30 x D30mm
- Material: Brass, stainless steel, ABS
- Weight: 0.949kg
- Colour: Black
- Finish: Matt
- Finish process: Electroplating
- Inlet size: G1/2"
- Recommended minimum pressure: 0.3 bar (flow rate of 3.9 litres per minute)
- Recommended maximum pressure: 3.0 bar (flow rate of 11.5 litres per minute)
- Warranty: 3 years
Need to know - head & arm
- Style: Modern
- Head Dimensions: H250 x W250 x D47 mm
- Arm Dimensions: L235 x W22 x D60 mm
- Material: Brass, stainless steel, ABS
- Head Weight: 0.817kg
- Arm Weight: 0.13kg
- Colour: Black
- Finish: Matt
- Finish process: Electroplating
- Recommended minimum pressure: 0.5 bar (flow rate of 12.8 litres per minute)
- Recommended maximum pressure: 3.0 bar (flow rate of 29.8 litres per minute)
- Warranty: 3 years
Specification
Style & Finish
|
Finish
|
Matt |
|---|---|
|
Shower Head shape
|
Square |
|
Material
|
Brass |
|
Colour
|
Black |
Need To Know
|
Shower Type
|
Mixer |
|---|---|
|
Installation Type
|
Concealed |
|
Number of Outlets
Outlets refer to the water delivery points, such as a fixed overhead shower and a separate handset.
|
2 Outlet |
|
Style
|
Modern |
|
Temperature control
|
Thermostatic |
|
Diverter
A diverter allows you to switch water flow between multiple shower outlets.
|
Yes |
|
Adjustable height Slide Rail Kit
|
Yes |
Flow Rates (Litres Per Minutes)
|
0.5 Bar Flow Rate
|
9.9 |
|---|---|
|
1.0 Bar Flow Rate
|
14 |
|
2.0 Bar Flow Rate
|
20 |
|
3.0 Bar Flow Rate
|
24.6 |
Warranty
|
Warranty
|
3 years |
|---|
Water Pressure Requirements
|
Maximum Operating Pressure (Bar)
|
3.0 bar |
|---|---|
|
Minimum Operating Pressure (Bar)
The minimum water pressure required for the shower to operate correctly.
|
1.0 Bar |
