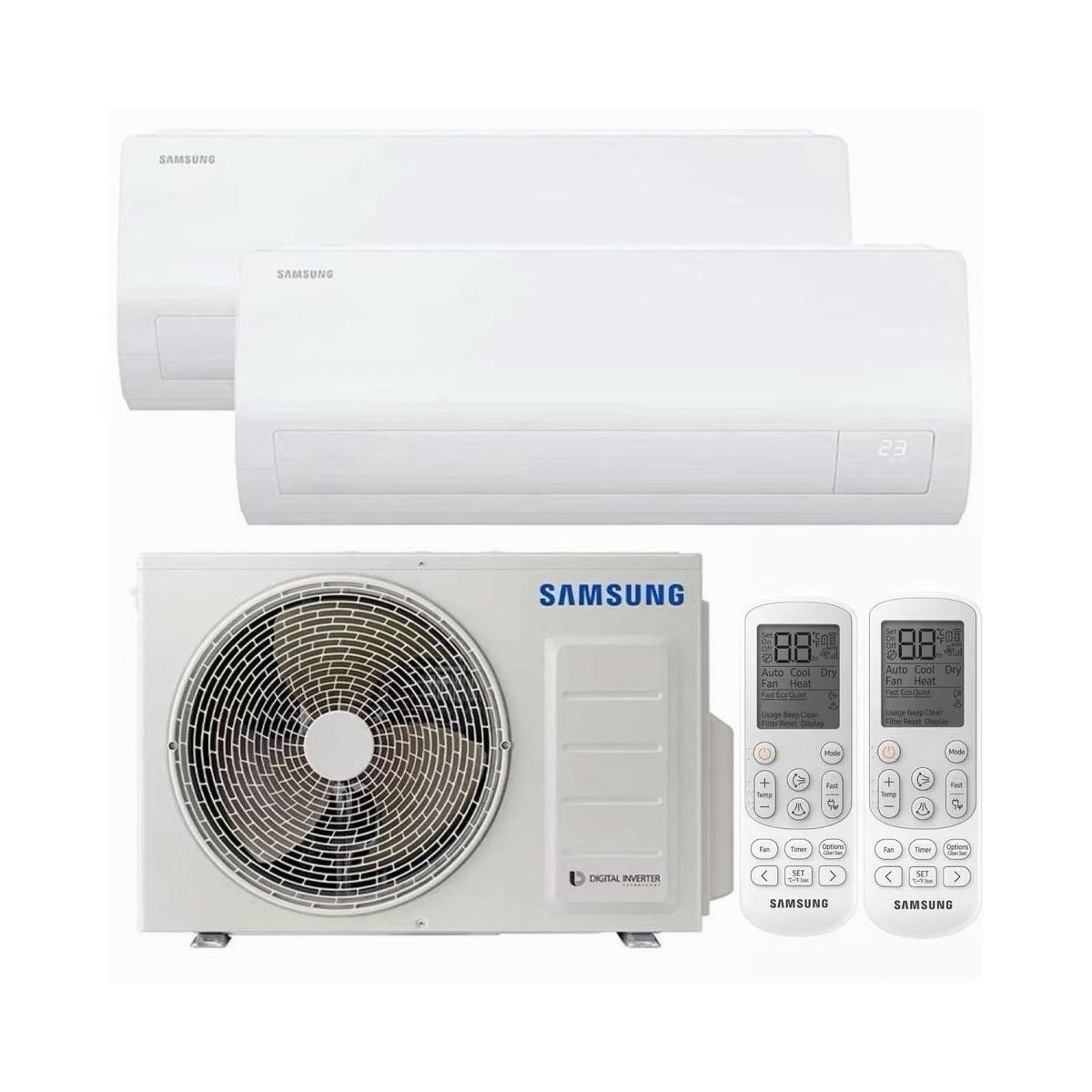

Samsung Luzon A+++ Smart Multi‑Split 9000 + 12000 BTU Wall Mounted Air Conditioner with Heat Pump
Why buy me
The details
A premium multi-split, sized for two rooms
The Samsung Luzon dual-split brings Samsung’s Free Joint Multi (FJM) platform to a compact two-room set-up. Unlike conventional split air conditioners that need a separate outdoor compressor for every room, the Luzon runs two indoor units from a single AJ040 outdoor condenser. That saves on installation, saves on running cost and keeps the outside of your property tidy. Each indoor unit is controlled independently – by its own remote or through the SmartThings app – so both rooms can be set to suit whoever is in them.
The pairing is deliberate:
Cooling & heating, all year round
The Luzon is a full heat pump system – it cools in summer and heats in winter, drawing on the outdoor unit’s 4.2 kW nominal heating output. The dehumidify function pulls excess moisture out of the air for better air quality and is genuinely useful for drying laundry on wet days. Heating by heat pump is up to four times more efficient than direct electric heating and the outdoor unit keeps working in outdoor temperatures down to -15°C in heating.
Samsung Digital Inverter Boost
At the heart of the system is Samsung’s Twin BLDC rotary compressor with Digital Inverter Boost. Compressor speed ramps up and down with demand instead of switching hard on and off, so the system reaches target temperature quickly and then modulates down to hold it. Inverter systems typically cut 40–60% off the energy bill versus a fixed-speed equivalent and run far more quietly once settled. As configured here (9K + 12K), the system is rated SEER 8.54 (cooling) and SCOP 4.60 (heating) – energy class A+++ / A++.
Customize your comfort & save energy
Don’t waste money conditioning rooms nobody is in. A dual split lets you create separate temperature zones in the parts of your home you actually use, with each room set independently. At nominal cooling, the outdoor unit draws around 0.9 kW – roughly 24p per hour at 27p/kWh* – and the inverter drops well below that once it is holding temperature.
Running cost assumption: 27p/kWh.
Built to be lived with
Technical Specifications
Dimensions
What's in the Box
Not Included
Useful Information
The indoor and outdoor units are pre-gassed and sealed. The indoor units fit to the wall using the mounting plate supplied in the box. The outdoor condenser can be floor-mounted or wall-mounted using an optional bracket.
This unit must be installed by an F-Gas qualified air conditioning engineer. Please ensure the fitter reads the user manual in full before installing. These units contain a gas (R32) governed by F-Gas regulations, which must be handled by qualified F-Gas personnel.
Note: To reduce Global Warming Potential, the outdoor unit footprint and running cost, the outdoor unit has a rating lower than the sum of the indoor units’ BTU. This does not affect cooling or heating in individual rooms – the units are variable inverters and balance capacity between rooms to reach target temperature in the shortest time. Please size rooms per our guidance or call for tech support.
Downloads
|
Brand
|
Samsung |
|---|---|
|
Type
|
Wall mounted |
|
Split Type
Multi split air cons connect a number of indoor units to one outdoor unit, to cool more than one room while saving space and running costs. Single room split air con units have one indoor unit connected to an outdoor system. Air cons with no outdoor unit are vented straight through the wall, making them perfect for anywhere outdoor space is difficult to access.
|
Multi-Split |
|
Maximum Cooling Area
|
35sqm |
|
Cooling Power (BTU)
The maximum cooling power of your air con in British Thermal Units. The greater the BTU, the larger the space the unit can cool.
|
12000 |
|
Pre-Gassed
For quicker installation
|
Yes |
|
Refrigeration Gas
R290 is an energy-efficient refrigerant, an eco-friendly alternative with zero ozone depletion potential (ODP). R290 does also not require installation by an F-Gas certified engineer, whereas R32 requires installation by an F-Gas certified engineer.
|
R32 |
|
Pipe Kit Included
|
No |
|
Cooling Power (kW)
The maximum cooling power of your air con in kilowatts. The greater the kW, the larger the space the unit can cool.
|
4.0kW |
|
Power Supply (V/hz)
|
220-240V/50hz |
|
Energy Rating
|
A+++ / A++ |
|
Lowest Temperature
|
-15Degrees |
|
Noise Level (Sound Pressure)
How loud your air con is. A normal conversation is about 60dB. Sound Pressure is what your ears actually hear. Think of it like the brightness of the light hitting a specific surface.
|
19dB(A) |
|
Colour
|
White |
|
Warranty
|
1 year warranty |
|
Power Input (Cooling)
|
900W |
|---|
|
Heating Function
Heat pump for efficient heating, perfect for year round use
|
Yes |
|---|---|
|
Smart
Can be operated or scheduled using your smart phone or tablet.
|
Yes |
|
Quiet
|
Yes |
|
Timer
|
Programmable |
|
Dehumidifies
Removes moisture from the air in your home, for a more comfortable humidity level. Reduces mould and mildew.
|
Yes |
|
Control Type
|
Electronic |
|
Auto Restart
Restarts after power failures and reverts to your previous settings.
|
Yes |
|
Max. Hose Length
|
30Metres |
|---|---|
|
Pipe Kit Length
|
N/AMetres |
|
Weight
|
9.1kg |
|
Height
|
30cm |
|
Width
|
82cm |
|
Depth
|
22cm |
|
Home
|
Yes |
|---|---|
|
Office
|
Yes |
